eXtreme Joist H4

$0.00 AUD


Product only available in-store.

Products that are available from our store can be delivered within the Melbourne metro area that will attract a delivery fee.

Click here for fees and conditions

Pin It

Product Details

Introducing the newest range in the eXtreme Timber collection the NEW eXtreme Joist!

eXtreme Timber products use a blend of new technology and time-proven methods to create timber products that perform in the extreme Australian environment.

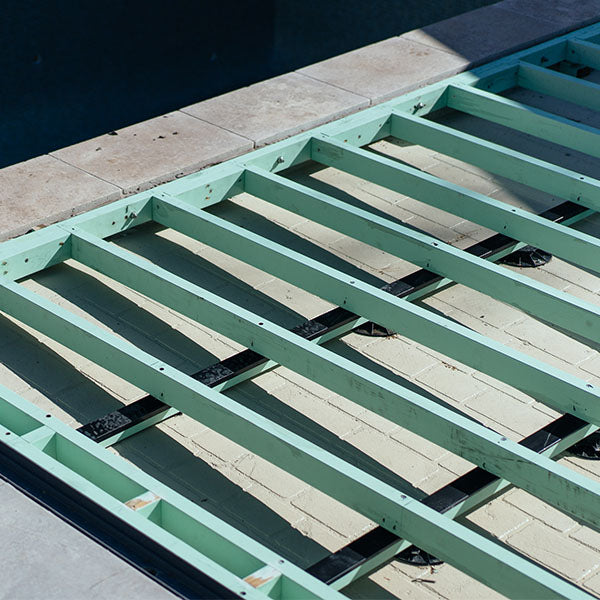

eXtreme Joist is perfect for those sleek, low-to-ground decks. Using radiata pine which is one of the most versatile building products available on the market while boasting H4 Copper Azole treatment protecting it from insect and fungal decay. The H4 Treatment by Lonza in eXtreme Joist utilizes BARamine® technology for improved penetration in the wood which equals better protection.



What applications are H4 eXtreme joist for?

When decking is less than 400mm off the ground, additional consideration to ensure adequate performance and service life of the timber is required.

This includes increased ventilation, sub-surface drainage, and increased timber durability/preservative treatment. Any framing timbers on the ground or lower than 150mm are required to be termite resistant and in-ground durability Class 1 or preservative treated to H4 or better.

 Description  Length

Price/Lmt

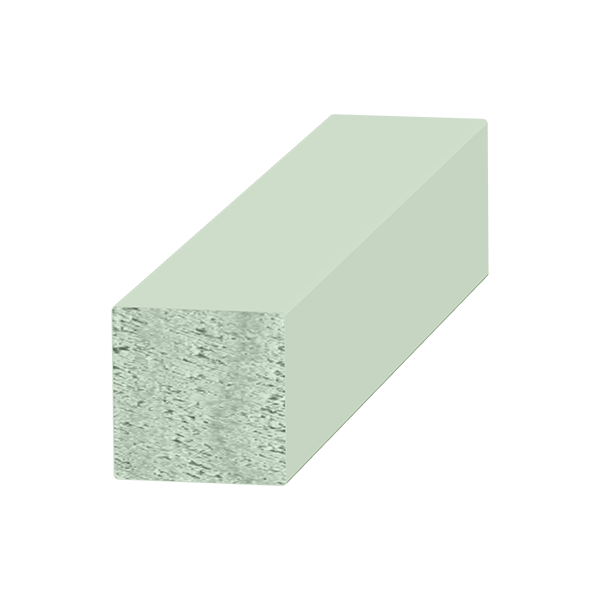

44x44 eXtreme Joist CA F7 DAR Primed H4 5.4m $8.90/lmt

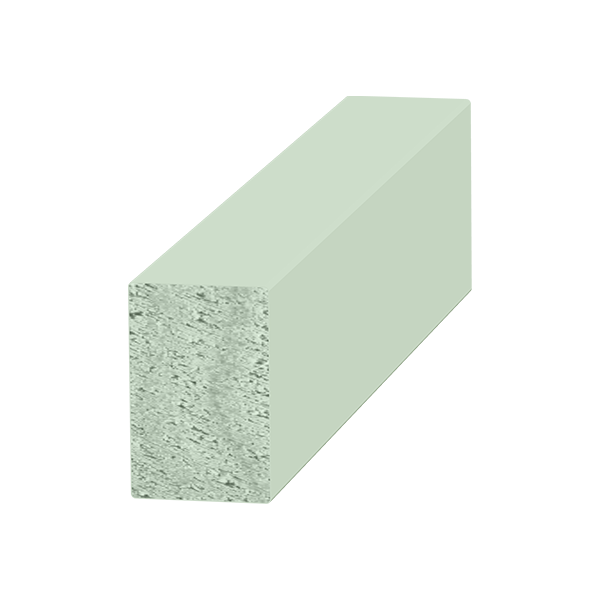

68x44 eXtreme Joist CA F7 DAR Primed H4 5.4m $13.80/lmt

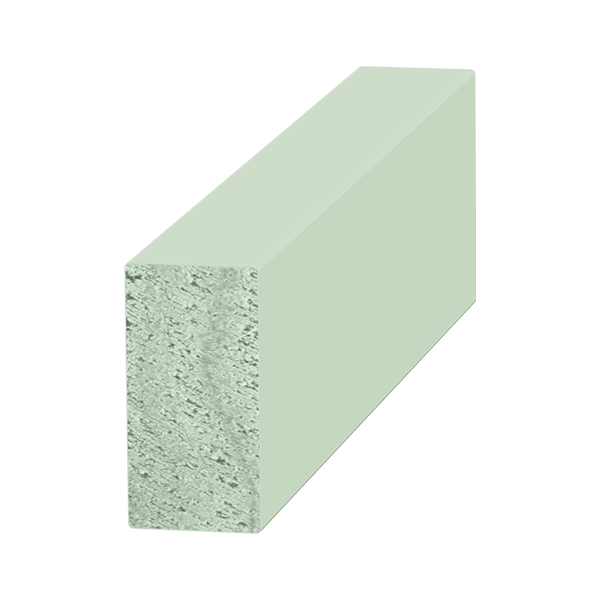

88x44 eXtreme Joist CA F7 DAR Primed H4 5.4m $18.20/lmt

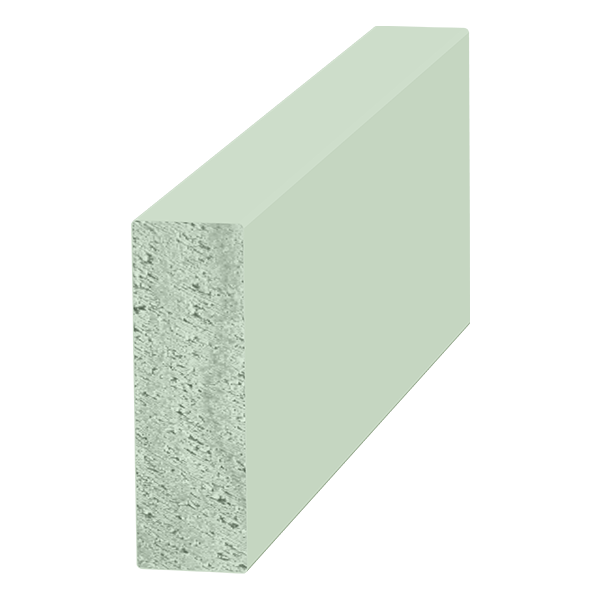

138x44 eXtreme Joist CA F7 DAR Primed H4 5.4m $29.95/lmt


Single Span Residential 2.0kPa

 Joist Centres
Joist Size 300 350 400 450
44 x 44 250 250 250 250
68 x 44 640 600 600 600
88 x 44 1300 1190 1100 1050
138 x 44 2710 2590 2430 2320



Continuous Span Residential 2.0kPa

 Joist Centres
Joist Size 300 350 400 450
44 x 44 250 250 250 250
68 x 44 900 830 780 750
88 x 44 1930 1710 1570 1470
138 x 44 3320 3080 2890 2720



Preparations

It is important that the ground beneath a deck is completely cleared of all building rubbish, garden debris and obstructions to water or air movement. Water must not be able to pool under the deck and the ground must be sloped away from the foundations of the house. Agricultural drainage pipes may be required in some instances so water can properly ow away from beneath the deck.

Even though eXtreme Joist are H4 treated, it should not be subject to permanent contact with fresh water, if the timber will be in permanent contact you will require H5 or higher.

Plastic sheeting acting as a waterproof membrane should be placed on the cleared ground. If timber bearers are to be placed directly on the ground, the plastic sheet should be covered with compacted gravel or sand to provide a solid base.

 Installation guide: Click here
