KlevaKlip Adjustable Joist Support Kit
$10.45 AUD
Product Details
KlevaKlip Adjustable Joist Support Kit - (AJ45KIT)

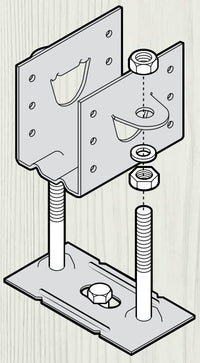

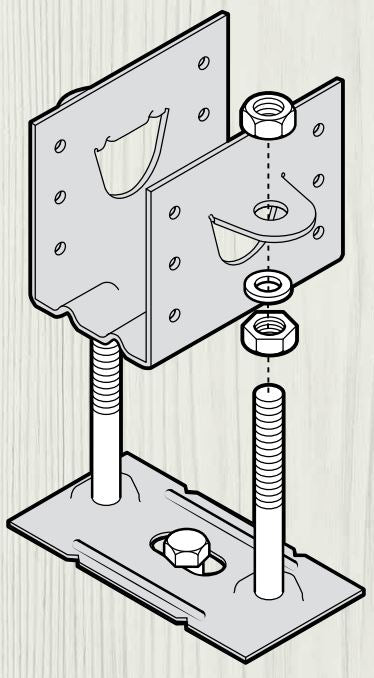

The KlevaKlip adjustable joist support has been designed specifically to easily be built over concrete slabs in areas where limited ground clearance is available using 45mm Joists.
The adjustable joist support provides a top of joist height of 86mm (min) and 200mm (max).
Key Benefits
- Keeps your joists off the concrete and free of unwanted moisture ingress.
- Ideal for areas where the concrete has built in "fall" to provide a level deck.
- Quick and easy to use.

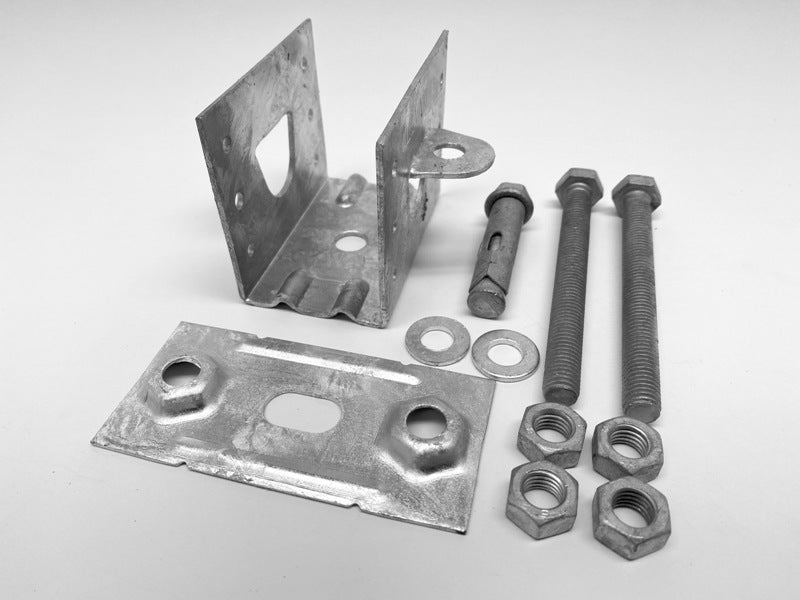

What's Included
- x1 Base Plate & Joist Support
- x1 Masonry Bolt M10x60mm
- x2 M10x100mm Hex Head Bolt
- x4 M10 Nuts
- x2 M10 Washers
Span requirements for base- plate positioning for AJ45KIT & AJH45G (Aus/NZ)
All based upon "continuous span" with joists at 450mm between centre's.
| Joist Size | Recommended Span (mm) | Maximum Span (mm) |
| 70 x 45 MGP10 | 800 | 1200 |
| 90 x 45 MGP10 | 1000 | 1500 |
| 90 x 45 MGP12 | 1200 | 1600 |
| *120x45MGP10 | 1200 | 1800 |
| *140x45MGP10 | 1200 | 1800 |
* Joist span limited by lateral loading on bolts
